MMG3008NT1 - Heterojunction Bipolar Transistor

NXP

The MMG3008NT1 by NXP is a Heterojunction Bipolar Transistor. Below is the official datasheet preview.

📥 Download Datasheet

MMG3008NT1 Heterojunction Bipolar Transistor by NXP - Datasheet Preview — Official preview page of the **MMG3008NT1** Heterojunction Bipolar Transistor datasheet (NXP).

Datasheet Details

Part number	MMG3008NT1
Manufacturer	NXP
File Size	397.50 KB
Description	Heterojunction Bipolar Transistor
Datasheet	MMG3008NT1-NXP.pdf
Additional preview pages of the MMG3008NT1 datasheet.

MMG3008NT1 Product details

Description

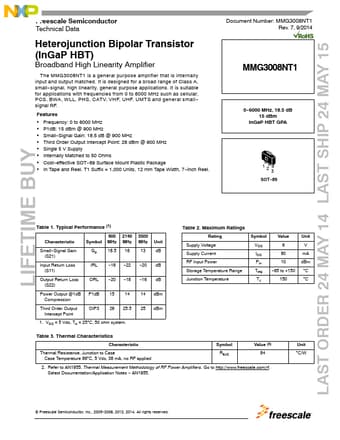

Pin Number Pin Function 1 RFin 2 Ground 3 RFout/DC Supply 2 123 Figure 1. Functional Diagram Table 6. ESD Protection Characteristics Test Methodology Human Body Model (per JESD 22--A114) Machine Model (per EIA/JESD 22--A115) Charge Device Model (per JESD 22--C101) Table 7. Moisture Sensitivity Level Test Methodology Per JESD 22--A113, IPC/JEDEC J--STD--020 Class 1A A IV Rating Package Peak Temperature Unit 1 260 C MMG3008NT1 2 RF Device Data Freescale Semiconductor, Inc.LAS

Features

Frequency: 0 to 6000 MHz.
P1dB: 15 dBm @ 900 MHz.
Small--Signal Gain: 18.5 dB @ 900 MHz.
Third Order Output Intercept Point: 26 dBm @ 900 MHz.
Single 5 V Supply.
Internally Matched to 50 Ohms.
Cost--effective SOT--89 Surface Mount Plastic Package.
In Tape and Reel. T1 Suffix = 1,000 Units, 12 mm Tape Width, 7--inch Reel. Document Number: MMG3008NT1 Rev. 7, 9/2014 MMG3008NT1 0--6000 MHz, 18.5 dB 15 dBm InGaP HBT GPA 12 3 SOT--89 Table 1. Typical Performa.
