LA8535 - 3A/21V Step-Down DC-DC Converter

📥 Download Datasheet

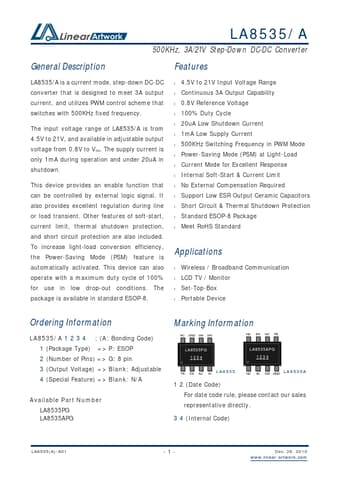

LA8535 Datasheet Preview — Preview of LA8535 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LA8535
Manufacturer	Linear Artwork
File Size	972.11 KB
Description	3A/21V Step-Down DC-DC Converter
Datasheet	LA8535-LinearArtwork.pdf

LA8535 Product details

Description

LA8535/A 500KHz, 3A/21V Step-Down DC-DC Converter

Features

LA8535/A is a current mode, step-down DC-DC converter that is designed to meet 3A output current, and utilizes PWM control scheme that switches with 500KHz fixed frequency. The input voltage range of LA8535/A is from 4.5V to 21V, and available in adjustable output voltage from 0.8V to VIN. The supply current is only 1mA during operation and under 20uA in shutdown. This device provides an enable function that can be controlled by external logic signal. It also provides excellent regulation durin.
