LA8508A, LA8508A-INNO 18V/2A Synchronous Step-Down DC-DC Converter

LA8508A Description

LA8508A 380KHz, 18V/2A Synchronous Step-Down DC-DC Converter General .
Features The LA8508A is a current mode, synchronous step-down DC-DC converter that is designed to meet 2A output current, and utilizes PWM control s.

LA8508A Features

* The LA8508A is a current mode, synchronous step-down DC-DC converter that is designed to meet 2A output current, and utilizes PWM control scheme that switches with 380KHz fixed frequency. The input voltage range of LA8508A is from 4.5V to 18V, and available in adjustable output voltage from 0.925V

LA8508A Applications

* It is available in SOP-8 and ESOP-8 packages. l Continuous 2A Output Capability l Reference V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LA8508A, LA8508A-INNO. Please refer to the document for exact specifications by model.

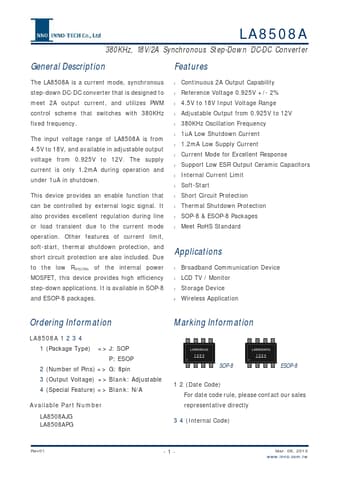

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LA8508A, LA8508A-INNO
Manufacturer
INNO-TECH
File Size
255.44 KB
Datasheet
LA8508A-INNO-TECH.pdf
Description
18V/2A Synchronous Step-Down DC-DC Converter
Note
This datasheet PDF includes multiple part numbers: LA8508A, LA8508A-INNO.
Please refer to the document for exact specifications by model.
