LA8509A, LA8509A-INNO 18V/3A Synchronous Step-Down DC-DC Converter

LA8509A Description

LA8509A 340KHz, 18V/3A Synchronous Step-Down DC-DC Converter General .
Features The LA8509A is a current mode, synchronous step-down DC-DC converter that is designed to meet 3A output current, and utilizes PWM control s.

LA8509A Features

* The LA8509A is a current mode, synchronous step-down DC-DC converter that is designed to meet 3A output current, and utilizes PWM control scheme that switches with 340KHz fixed frequency. The input voltage range of LA8509A is from 4.5V to 18V, and available in adjustable output voltage from 0.925V

LA8509A Applications

* It is available in ESOP-8 package. l Continuous 3A Output Capability l 0.925V Reference Voltage l 4.5V to 18V Input Voltage Range l Adjustable Output from 0.925V to 12V l 340KHz Oscillation Frequency l 0.3uA Low Shutdown Current l 1.3mA Low Supply Current l Current Mode for Excellent Response l Su

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LA8509A, LA8509A-INNO. Please refer to the document for exact specifications by model.

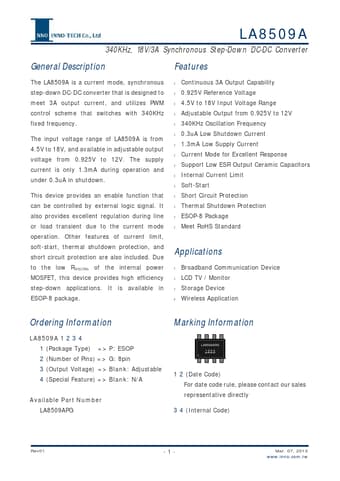

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LA8509A, LA8509A-INNO
Manufacturer
INNO-TECH
File Size
235.16 KB
Datasheet
LA8509A-INNO-TECH.pdf
Description
18V/3A Synchronous Step-Down DC-DC Converter
Note
This datasheet PDF includes multiple part numbers: LA8509A, LA8509A-INNO.
Please refer to the document for exact specifications by model.
