LA8506 Datasheet PDF (3A/40V Step-Down DC-DC Converter)

LA8506 - 3A/40V Step-Down DC-DC Converter

Download the LA8506 datasheet PDF (LA8506-INNO included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 3a/40v step-down dc-dc converter.

Description

LA8506 500KHz, 3A/40V Step-Down DC-DC Converter

Features

LA8506 is a current mode, step-down DC-DC converter that is designed to meet 3A output current, and utilizes PWM control scheme that switches with 500KHz fixed frequency. The input voltage range of LA8506 is from 8V to 40V, and available in adjustable output voltage from 1.222V to 24V. The supply current is only 1mA during operation and under 30uA in shutdown. This device provides an enable function that can be controlled by external logic signal. It also provides excellent regulation during li.

📥 Download Datasheet

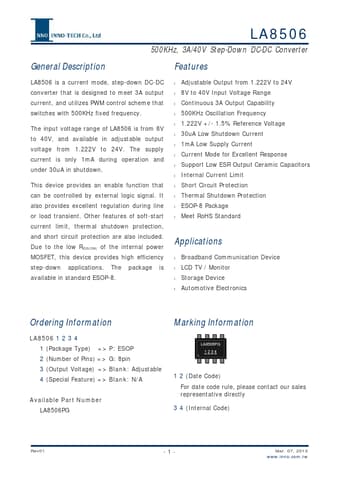

LA8506 3a/40v step-down dc-dc converter by INNO-TECH - Datasheet Preview — Note: The manufacturer provides a single datasheet file (LA8506-INNO-TECH.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	LA8506
Manufacturer	INNO-TECH
File Size	348.78 KB
Description	3A/40V Step-Down DC-DC Converter
Datasheet	LA8506 Datasheet

📁 Similar Datasheet

LA8500 - Tone Ringer (Sanyo)

LA8501-P - Tone Ringer (Sanyo)

LA8510 - Telephonic Speech Network (Sanyo)

LA8515N - Telephonic Speech Network (Sanyo)

LA8517 - 3A/23V Step-Down DC-DC Converter (Linear Artwork)

LA8517JG - 3A/23V Step-Down DC-DC Converter (Linear Artwork)

LA8517M - Audio Signal Processing Circuit (Sanyo)

LA8518M - LA8518M (Sanyo Semiconductor)

LA8518NM - Signal Processor (Sanyo)

LA8519M - I/O Switch/Voice Signal-Processing IC (Sanyo)

Full PDF Text Transcription

Click to expand full text

General Description LA8506 500KHz, 3A/40V Step-Down DC-DC Converter Features LA8506 is a current mode, step-down DC-DC converter that is designed to meet 3A output current, and utilizes PWM control scheme that switches with 500KHz fixed frequency. The input voltage range of LA8506 is from 8V to 40V, and available in adjustable output voltage from 1.222V to 24V. The supply current is only 1mA during operation and under 30uA in shutdown. This device provides an enable function that can be controlled by external logic signal. It also provides excellent regulation during line or load transient. Other features of soft-start current limit, thermal shutdown protection, and short circuit protection are also included.

Published: Feb 24, 2017 |
