LA8509, LA8509-INNO 18V/3A Synchronous Step-Down DC-DC Converter

LA8509 Description

LA8509 380KHz, 18V/3A Synchronous Step-Down DC-DC Converter General .
Features The LA8509 is a current mode, synchronous step-down DC-DC converter that is designed to meet 3A output current, and utilizes PWM control sc.

LA8509 Features

* The LA8509 is a current mode, synchronous step-down DC-DC converter that is designed to meet 3A output current, and utilizes PWM control scheme that switches with 380KHz fixed frequency. The input voltage range of LA8509 is from 4.5V to 18V, and available in adjustable output voltage from 0.925V to

LA8509 Applications

* It is available in SOP-8 package. l Continuous 3A Output Capability l 0.925V Reference Voltage l 4.5V to 18V Input Voltage Range l Adjustable Output from 0.925V to 12V l 380KHz Oscillation Frequency l 1uA Low Shutdown Current l 1.2mA Low Supply Current l Current Mode for Excellent Response l Suppo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LA8509, LA8509-INNO. Please refer to the document for exact specifications by model.

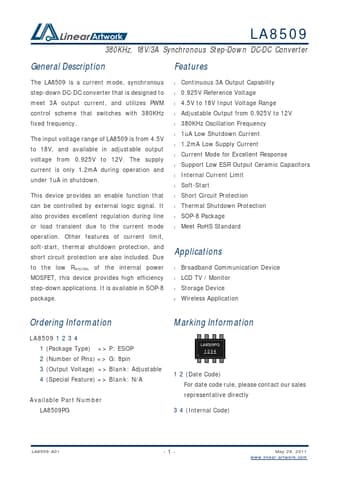

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LA8509, LA8509-INNO
Manufacturer
INNO-TECH
File Size
306.51 KB
Datasheet
LA8509-INNO-TECH.pdf
Description
18V/3A Synchronous Step-Down DC-DC Converter
Note
This datasheet PDF includes multiple part numbers: LA8509, LA8509-INNO.
Please refer to the document for exact specifications by model.
