LM200WD3-TLCC - HD + TFT LCD

The LM200WD3-TLCC by LG is a HD + TFT LCD. Below is the official datasheet preview.

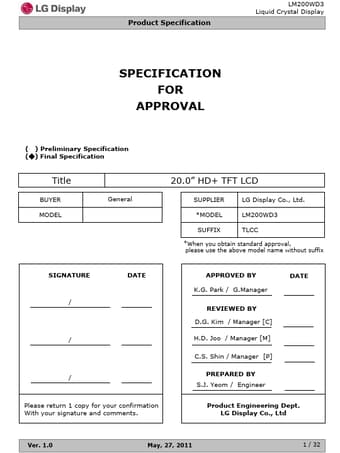

LM200WD3-TLCC HD + TFT LCD by LG - Datasheet Preview — Official preview page of the **LM200WD3-TLCC** HD + TFT LCD datasheet (LG).

Datasheet Details

Part number	LM200WD3-TLCC
Manufacturer	LG
File Size	379.99 KB
Description	HD + TFT LCD
Datasheet	LM200WD3-TLCC-LG.pdf
Additional preview pages of the LM200WD3-TLCC datasheet.

LM200WD3-TLCC Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS LVDS characteristics SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE POWER DIP CONDITION OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC ENVIRONMENT PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG

Features

Active screen size Outline Dimension Pixel Pitch Pixel Format Interface Color depth Luminance, white Viewing Angle (CR>10) Power Consumption Weight Display operating mode Surface treatments 20.0 inches (508.05mm) diagonal 462.8(H) x 272.0(V) x 10.2(D) mm(Typ. ) 0.0922.
RGB(H)mm x 0.2766(V)mm 1600 horizontal By 900 vertical Pixels. RGB stripe arrangement LVDS 2Port 16.7M colors 360 cd/m2 ( Center 1Point, typ) R/L 170(Typ. ), U/D 160(Typ. ) Total 14.2 W(Typ. ), (4.3 W@VLCD , 9.9 W@IBL = 110 mA) 1,.
