LM200WD3-TLA1 - HD + TFT LCD

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS LVDS characteristics SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE ITEM Page 1 2 3 4 5 6 6 8 11 14 15 16 17 18 19 25 28 29 29 29 30 30 30 31 31 31 32 3

Features

  • Active screen size Outline Dimension Pixel Pitch Pixel Format Interface Color depth Luminance, white Viewing Angle (CR>10) Power Consumption Weight Display operating mode Surface treatments Ver.1.0 20.0 inches (508.05mm) diagonal 462.8(H) x 272.0(V) x 11.5(D) mm(Typ. ) 0.09225.
  • RGB(H)mm x 0.27675(V)mm 1600 horizontal By 900 vertical Pixels. RGB stripe arrangement LVDS 2Port 16.7M colors 250 cd/m2 ( Center 1Point, typ) R/L 170(Typ. ), U/D 160(Typ. ) Total 14.5W(Typ. ), (3.9W@VLCD , 10.6W@IBL =110.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM200 Voltage Regulator National Semiconductor
LM200 LCD Hitachi
LM2002 8 Watt Audio Power Amplifier National Semiconductor
LM2002A 8 Watt Audio Power Amplifier National Semiconductor
LM2005 LM2005 20 Watt Automotive Power Amplifier National Semiconductor

Other Datasheets by LG Electronics

Part Number Description
LM200WD3-TLA3 HD + TFT LCD
LM200WD3-TLA5 HD+ TFT LCD
LM200WD3-TLC1 HD + TFT LCD
LM200WD3-TLC7 HD + TFT LCD
LM200WD3-TLC9 HD + TFT LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

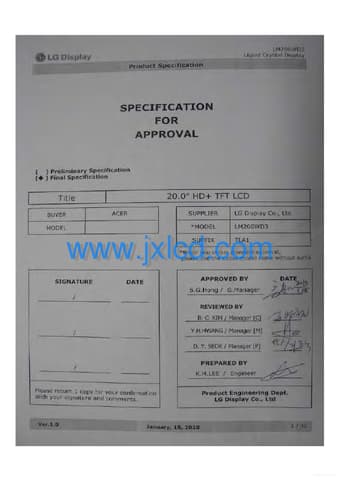

LM200WD3 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification (◆ ) Final Specification Title BUYER MODEL ACER 20.0” HD+ TFT LCD SUPPLIER *MODEL SUFFIX LG Display Co., Ltd. LM200WD3 TLA1 www.jxlcd.com www.jxlcd.com SIGNATURE / REVIEWED BY B. C. KIM / Manager [C] / Y.H.HWANG / Manager [M] D. Y. SEOK / Manager [P] PREPARED BY / K.H.LEE / Engineer DATE APPROVED BY S.G.Hong / G.Manager *When you obtain standard approval, please use the above model name without suffix DATE Please return 1 copy for your confirmation With your signature and comments. Product Engineering Dept. LG Display Co., Ltd Ver.1.0 January, 15, 2010 1 / 32 Free Datasheet http://www.datasheet4u.
