LM20123 - Synchronous Buck Regulator

Texas Instruments

📥 Download Datasheet

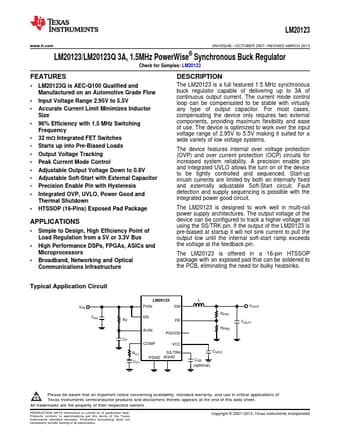

LM20123 Datasheet Preview — Preview of LM20123 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LM20123
Manufacturer	Texas Instruments
File Size	0.96 MB
Description	Synchronous Buck Regulator
Datasheet	LM20123-etcTI.pdf

LM20123 Product details

Description

The LM20123 is a full featured 1.5 MHz synchronous buck regulator capable of delivering up to 3A of continuous output current.

Features

1.
2 LM20123Q is AEC-Q100 Qualified and Manufactured on an Automotive Grade Flow.
Input Voltage Range 2.95V to 5.5V.
Accurate Current Limit Minimizes Inductor Size.
96% Efficiency with 1.5 MHz Switching Frequency.
32 mΩ Integrated FET Switches.
Starts up into Pre-Biased Loads.
Output Voltage Tracking.
Peak Current Mode Control.
Adjustable Output Voltage Down to 0.8V.
Adjustable Soft-Start with External Capac.
