LM20133 - Synchronous Buck Regulator

Texas Instruments

📥 Download Datasheet

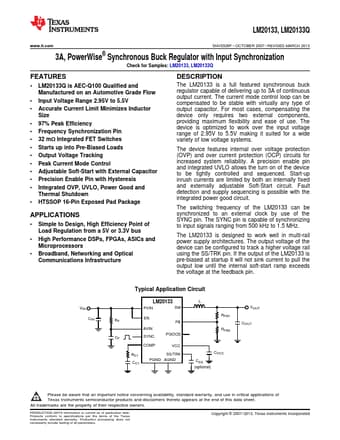

LM20133 Datasheet Preview — Preview of LM20133 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LM20133
Manufacturer	Texas Instruments
File Size	1.09 MB
Description	Synchronous Buck Regulator
Datasheet	LM20133-etcTI.pdf

LM20133 Product details

Description

The LM20133 is a full featured synchronous buck regulator capable of delivering up to 3A of continuous output current.

Features

1.
2 LM20133Q is AEC-Q100 Qualified and Manufactured on an Automotive Grade Flow.
Input Voltage Range 2.95V to 5.5V.
Accurate Current Limit Minimizes Inductor Size.
97% Peak Efficiency.
Frequency Synchronization Pin.
32 mΩ Integrated FET Switches.
Starts up into Pre-Biased Loads.
Output Voltage Tracking.
Peak Current Mode Control.
Adjustable Soft-Start with External Capacitor.
Precision Enable Pin w.
