LM2005 - LM2005 20 Watt Automotive Power Amplifier

National Semiconductor

📥 Download Datasheet

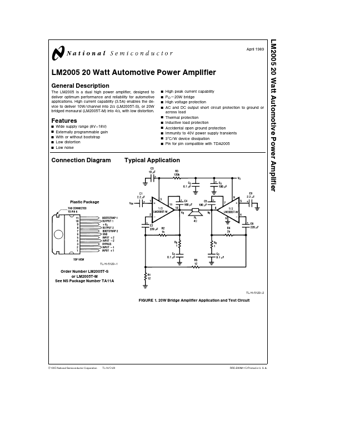

LM2005 Datasheet Preview — Preview of LM2005 PDF

Datasheet Details

Part number	LM2005
Manufacturer	National Semiconductor
File Size	205.69 KB
Description	LM2005 20 Watt Automotive Power Amplifier
Datasheet	LM2005_NationalSemiconductor.pdf

LM2005 Product details

Description

The LM2005 is a dual high power amplifier designed to deliver optimum performance and reliability for automotive applications High current capability (3 5A) enables the device to deliver 10W channel into 2X (LM2005T-S) or 20W bridged monaural (LM2005T-M) into 4X with low distortion Y Y Y Y Y

Features

Y Y Y Y Y Y Y Y Y Y Wide supply range (8V.
18V) Externally programmable gain With or without bootstrap Low distortion Low noise High peak current capability PO e 20W bridge High voltage protection AC and DC output short circuit protection to ground or across load Thermal protection Inductive load protection Accidental open ground protection Immunity to 40V power supply transients 3 C W device dissipation Pin for pin compatible with TDA2005 Connection Diagram Typical.
