LM200WD3-TLC7 - HD + TFT LCD

📥 Download Datasheet

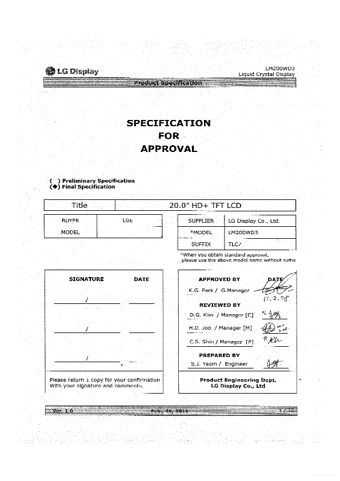

LM200WD3-TLC7 Datasheet Preview — Preview of LM200WD3-TLC7 PDF

Datasheet Details

Part number	LM200WD3-TLC7
Manufacturer	LG
File Size	1.32 MB
Description	HD + TFT LCD
Datasheet	LM200WD3-TLC7_LG.pdf

LM200WD3-TLC7 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS LVDS characteristics SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE POWER DIP CONDITION OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC ENVIRONMENT PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG

Features

Active screen size Outline Dimension Pixel Pitch Pixel Format Interface Color depth Luminance, white Viewing Angle (CR>10) Power Consumption Weight Display operating mode Surface treatments Ver. 1.0 20.0 inches (508.05mm) diagonal 462.8(H) x 272.0(V) x 10.2(D) mm(Typ. ) 0.0922.
RGB(H)mm x 0.2766(V)mm 1600 horizontal By 900 vertical Pixels. RGB stripe arrangement LVDS 2Port 16.7M colors 250 cd/m2 ( Center 1Point, typ) R/L 170(Typ. ), U/D 160(Typ. ) Total 14.2 W(Typ. ), (4.3 W@VLCD , 9.9 W@IBL = 1.
