1SS380 - SWITCHING DIODE

Kexin

📥 Download Datasheet

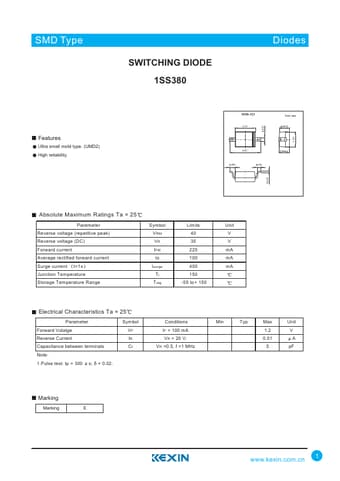

1SS380 Datasheet Preview — Preview of 1SS380 PDF

Datasheet Details

Part number	1SS380
Manufacturer	Kexin
File Size	27.54 KB
Description	SWITCHING DIODE
Datasheet	1SS380-Kexin.pdf

1SS380 Product details

Features

Ultra small mold type. (UMD2) High reliability. SOD-323 1.7+0.1 -0.1 Unit: mm 0.85+0.05 -0.05 +0.050.3 -0.05 +0.11.3 -0.1 2.6+0.1 -0.1 0.475 0.375 1.0max +0.050.1 -0.02 Absolute Maximum Ratings Ta = 25 Paremeter Reverse voltage (repetitive peak) Reverse voltage (DC) Forward current Average rectified forward current Surge current t=1s Junction Temperature Storage Temperature Range Symbol VRM VR IFM Io Isurge Tj Tstg Limits 40 35 225 100 400 150 -55 to+ 150 Unit V V mA mA mA Electrica.
