1SS300 - ULTRA HIGH SPEED SWITCHING APPLICATIONS DIODES

Features

  • Small package Low forward voltage :VF(3) = 0.92 V(Typ) Fast reverse recovery time :trr = 1.6 ns (Typ) Small total capacitance :CT = 2.2 pF(Typ) Absolute Maximum Ratings Ta = 25 P aram eter Maximum (peak) reverse voltage Reverse voltage Maximum (peak) forward current Average forward current Surge current (10 ms) Power dissipation Junction Temperature Storage Temperature range (.
  • ) Unit rating. Total rating = Unit rating 1.5 Symbol VRM VR IFM IO IFSM P Tj Tstg Rating 85 80 300(.
  • ).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1SS300 Silicon Epitaxial Planar Type Diode Toshiba Semiconductor
1SS301 Silicon Epitaxial Planar Type Diode Toshiba Semiconductor
1SS301 SUPER HIGH SPEED SWITCHING DIODE XIN SEMICONDUCTOR
1SS302 Diode Toshiba Semiconductor
1SS302 ULTRA HIGH SPEED SWITCHING APPLICATIONS Guangdong Kexin Industrial

Other Datasheets by Kexin Semiconductor

Part Number Description
1SS301 ULTRA HIGH SPEED SWITCHING APPLICATIONS DIODES
1SS313 VHF TUNER BAND SWITCH APPLICATIONS DIODES
1SS322 LOW VOLTAGE HIGH SPEED SWITCHING DIODES
1SS344 ULTRA HIGH SPEED SWITCHING DIODE
1SS345 Sillicon Epitaxial Schottky Barrier Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

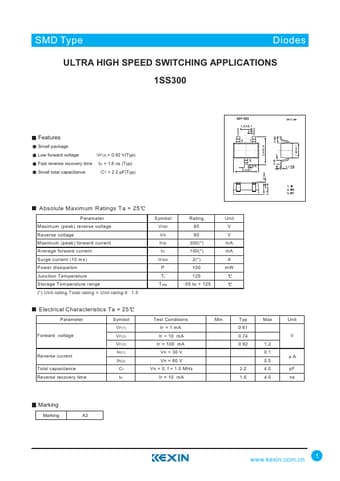

SMD Type Diodes ULTRA HIGH SPEED SWITCHING APPLICATIONS 1SS300 Features Small package Low forward voltage :VF(3) = 0.92 V(Typ) Fast reverse recovery time :trr = 1.6 ns (Typ) Small total capacitance :CT = 2.2 pF(Typ) Absolute Maximum Ratings Ta = 25 P aram eter Maximum (peak) reverse voltage Reverse voltage Maximum (peak) forward current Average forward current Surge current (10 ms) Power dissipation Junction Temperature Storage Temperature range (*) Unit rating.Total rating = Unit rating 1.
