IRGP4066D-EPBF, IRGP4066DPBF - INSULATED GATE BIPOLAR TRANSISTOR

International Rectifier

📥 Download Datasheet

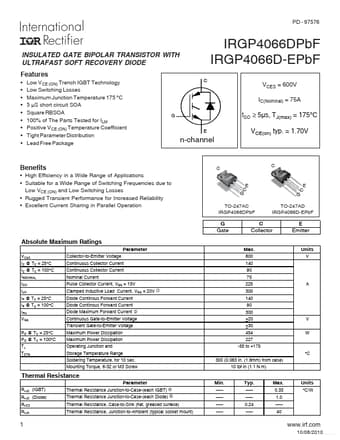

IRGP4066D-EPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRGP4066D-EPBF, IRGP4066DPBF. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IRGP4066D-EPBF, IRGP4066DPBF
Manufacturer	International Rectifier ↗
File Size	332.31 KB
Description	INSULATED GATE BIPOLAR TRANSISTOR
Datasheet	IRGP4066DPBF_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRGP4066D-EPBF, IRGP4066DPBF. Please refer to the document for exact specifications by model.

IRGP4066D-EPBF Product details

Features

Low VCE (ON) Trench IGBT Technology Low Switching Losses Maximum Junction Temperature 175 °C 5 μS short circuit SOA Square RBSOA 100% of The Parts Tested for ILM Positive VCE (ON) Temperature Coefficient Tight Parameter Distribution Lead Free Package C IRGP4066DPbF IRGP4066D-EPbF VCES = 600V IC(Nominal) = 75A G E tSC ≥ 5μs, TJ(max) = 175°C n-channel VCE(on) typ. = 1.70V Benefits.
High Efficie.
