IRG7PG42UD-EPbF, IRG7PG42UDPBF INSULATED GATE BIPOLAR TRANSISTOR

IRG7PG42UD-EPbF Description

  IRG7PG42UDPbF IRG7PG42UD-EPbF INSULATED GATE BIPOLAR TRANSISTOR .

IRG7PG42UD-EPbF Features

*  Low VCE (ON) trench IGBT technology
*  Low switching losses
*  Square RBSOA
*  100% of the parts tested for ILM
*  Positive VCE (ON) temperature co-efficient
*  Ultra fast soft recovery co-pak diode
*  Tight parameter distribution
*  Lead-free package Benefits

IRG7PG42UD-EPbF Applications

*  Suitable for a wide range of switching frequencies due to low VCE(on) and low switching losses
*  Rugged transient performance for increased reliability
*  Excellent current sharing in parallel operation Applications
*  U. P. S.
*  Welding
*  Solar Inverter
*  Inducti

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRG7PG42UD-EPbF, IRG7PG42UDPBF. Please refer to the document for exact specifications by model.

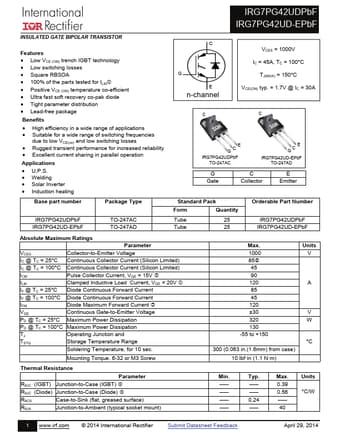

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRG7PG42UD-EPbF, IRG7PG42UDPBF
Manufacturer
International Rectifier
File Size
531.80 KB
Datasheet
IRG7PG42UDPBF-InternationalRectifier.pdf
Description
INSULATED GATE BIPOLAR TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: IRG7PG42UD-EPbF, IRG7PG42UDPBF.
Please refer to the document for exact specifications by model.
