IS49NLC93200 - 288Mb Common I/O RLDRAM 2 Memory

Integrated Silicon Solution

📥 Download Datasheet

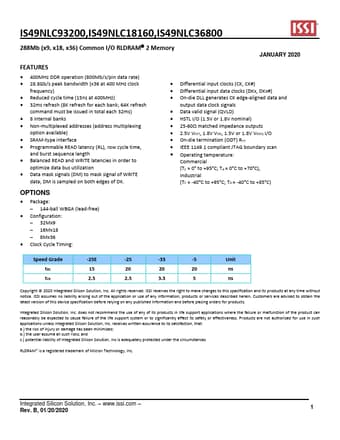

IS49NLC93200 Datasheet Preview — Preview of IS49NLC93200 PDF

Datasheet Details

Part number	IS49NLC93200
Manufacturer	Integrated Silicon Solution
File Size	1.32 MB
Description	288Mb Common I/O RLDRAM 2 Memory
Datasheet	IS49NLC93200-IntegratedSiliconSolution.pdf

IS49NLC93200 Product details

Description

1.1 288Mb (32Mx9) Common I/O BGA Ball-out (Top View) 1 A VREF B VDD C VTT D A221 E A212 F A5 G A8 H BA2 J NF3 K DK L REF# M WE# N A18 P A15 R VSS T VTT U VDD V VREF 2 VSS DNU4 DNU4 DNU4 DNU4 DNU4 A6 A9 NF3 DK# CS# A16 DNU4 DNU4 DNU4 DNU4 DNU4 ZQ 3 VEXT DNU4 DNU4 DNU4 DNU4 DNU4 A7 VSS VDD VDD VSS A17 DNU4 DNU4 DNU4 DNU4 DNU4 VEXT 4 VSS VSSQ VDDQ VSSQ VDDQ VSSQ VDD VSS VDD VDD VSS VDD VSSQ VDDQ VSSQ VDDQ VSSQ VSS 5678 9 VSS VSSQ VDDQ VSSQ VDDQ VSSQ VDD VSS VDD VD

Features

400MHz DDR operation (800Mb/s/pin data rate).
28.8Gb/s peak bandwidth (x36 at 400 MHz clock frequency).
Reduced cycle time (15ns at 400MHz).
32ms refresh (8K refresh for each bank; 64K refresh command must be issued in total each 32ms).
8 internal banks.
Non-multiplexed addresses (address multiplexing option available).
SRAM-type interface.
Programmable READ latency (RL), row cycle time, and burst sequence length.
Balanced READ and WRITE latencies in.
