IS41C16257, ISL 256K x 16 (4-MBIT) DYNAMIC RAM WITH FAST PAGE MODE

IS41C16257 Description

IS41C16257 IS41LV16257 256K x 16 (4-MBIT) DYNAMIC RAM WITH FAST PAGE MODE .
The ISSI IS41C16257 and the IS41LV16257 are 262,144 x 16-bit high-performance CMOS Dynamic Random Access Memories.

IS41C16257 Features

* Fast access and cycle time TTL compatible inputs and outputs Refresh Interval: 512 cycles/8 ms Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden JEDEC standard pinout Single power supply:
* 5V ± 10% (IS41C16257)
* 3.3

IS41C16257 Applications

* The IS41C16257 and the IS41LV16257 are packaged in a 40-pin, 400-mil SOJ and TSOP (Type II).
* KEY TIMING PARAMETERS Parameter Max. RAS Access Time (tRAC) Max. CAS Access Time (tCAC) Max. Column Address Access Time (tAA) Min. Fast Page Mode Cycle Time (tPC) Min. Read/Write Cycle

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS41C16257, ISL. Please refer to the document for exact specifications by model.

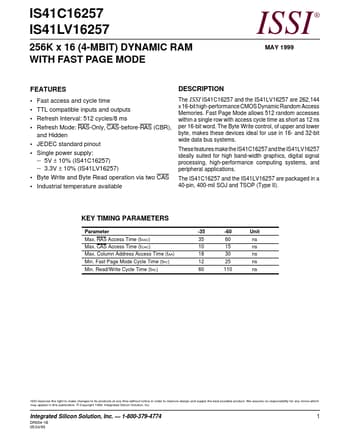

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS41C16257, ISL
Manufacturer
Integrated Silicon Solution Inc
File Size
160.47 KB
Datasheet
ISL-41C165.pdf
Description
256K x 16 (4-MBIT) DYNAMIC RAM WITH FAST PAGE MODE
Note
This datasheet PDF includes multiple part numbers: IS41C16257, ISL.
Please refer to the document for exact specifications by model.
