IS49NLC18320A, IS49NLC96400A - Common I/O RLDRAM 2 Memory

Integrated Silicon Solution

📥 Download Datasheet

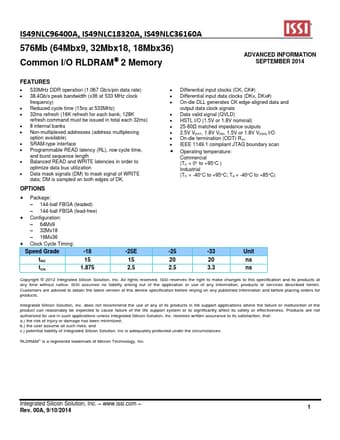

IS49NLC18320A Datasheet Preview — This datasheet PDF includes multiple part numbers: IS49NLC18320A, IS49NLC96400A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS49NLC18320A, IS49NLC96400A
Manufacturer	Integrated Silicon Solution
File Size	759.43 KB
Description	Common I/O RLDRAM 2 Memory
Datasheet	IS49NLC96400A-IntegratedSiliconSolution.pdf
Note	This datasheet PDF includes multiple part numbers: IS49NLC18320A, IS49NLC96400A. Please refer to the document for exact specifications by model.

IS49NLC18320A Product details

Description

1.1 576Mb (64Mx9) Common I/O BGA Ball-out (Top View) 1 2 3 4 5678 A VREF VSS VEXT VSS B VDD DNU3 DNU3 VSSQ C VTT DNU3 DNU3 VDDQ D A221 DNU3 DNU3 VSSQ E A21 DNU3 DNU3 VDDQ F A5 DNU3 DNU3 VSSQ G A8 A6 A7 VDD H BA2 A9 VSS VSS J NF2 NF2 VDD VDD K DK DK# VDD VDD L REF# CS# VSS VSS M WE# A16 A17 VDD N A18 DNU3 DNU3 VSSQ P A15 DNU3 DNU3 VDDQ R VSS DNU3 DNU3 VSSQ T VTT DNU3 DNU3 VDDQ U VDD DNU3 DNU3 VSSQ V VREF ZQ VEXT VSS 9

Features

533MHz DDR operation (1.067 Gb/s/pin data rate).
38.4Gb/s peak bandwidth (x36 at 533 MHz clock frequency).
Reduced cycle time (15ns at 533MHz).
32ms refresh (16K refresh for each bank; 128K refresh command must be issued in total each 32ms).
8 internal banks.
Non-multiplexed addresses (address multiplexing option available).
SRAM-type interface.
Programmable READ latency (RL), row cycle time, and burst sequence length.
Balanced READ and WRITE latenci.
