IS41LV85125A, IS41C85125A 512K x 8 (4-MBIT) DYNAMIC RAM

IS41LV85125A Description

IS41C85125A IS41LV85125A 512K x 8 (4-MBIT) DYNAMIC RAM WITH FAST PAGE MODE .
The ISSI IS41C85125A and IS41LV85125A are 512,288 x 8bit high-performance CMOS Dynamic Random Access Memories.

IS41LV85125A Features

* Fast access and cycle time TTL compatible inputs and outputs Refresh Interval: 1024 cycles/16 ms Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden
* JEDEC standard pinout
* Single power supply:
* 5V ± 10% (IS41C85125A)

IS41LV85125A Applications

* The IS41C85125A and IS41LV85125A are available in a 28-pin, 400-mil SOJ package. KEY TIMING PARAMETERS Parameter Max. RAS Access Time (tRAC) Max. CAS Access Time (tCAC) Max. Column Address Access Time (tAA) Min. Fast Page Mode Cycle Time (tPC) Min. Read/Write Cycle Time (tRC) -60 60 15 30 40 110 U

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS41LV85125A, IS41C85125A. Please refer to the document for exact specifications by model.

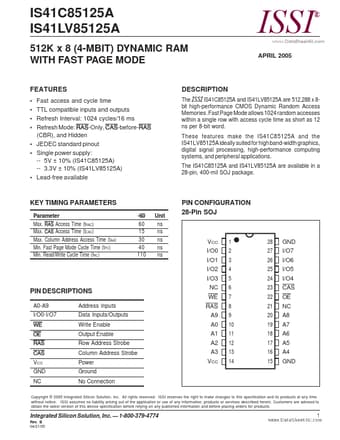

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS41LV85125A, IS41C85125A
Manufacturer
Integrated Silicon Solution
File Size
145.23 KB
Datasheet
IS41C85125A_IntegratedSiliconSolution.pdf
Description
512K x 8 (4-MBIT) DYNAMIC RAM
Note
This datasheet PDF includes multiple part numbers: IS41LV85125A, IS41C85125A.
Please refer to the document for exact specifications by model.
