IS41LV85120A, IS41C85120A 512K x 8 (4-MBIT) DYNAMIC RAM

IS41LV85120A Description

IS41C85120A IS41LV85120A 512K x 8 (4-MBIT) DYNAMIC RAM WITH EDO PAGE MODE .
The ISSI IS41C85120A and IS41LV85120A are 524,288 x 8bit high-performance CMOS Dynamic Random Access Memory.

IS41LV85120A Features

* TTL compatible inputs and outputs
* Refresh Interval: 1024 cycles/16 ms
* Refresh Mode : RAS-Only, CAS-before-RAS (CBR), and Hidden
* JEDEC standard pinout
* Single power supply 5V ± 10% (IS41C85120A) 3.3V ± 10% (IS41LV85120A)
* Lead-free available

IS41LV85120A Applications

* The IS41C85120A and IS41LV85120A are available in a 28-pin, 400-mil SOJ package. KEY TIMING PARAMETERS Parameter Max. RAS Access Time (tRAC) Max. CAS Access Time (tCAC) Max. Column Address Access Time (tAA) Min. Fast Page Mode Cycle Time (tPC) Min. Read/Write Cycle Time (tRC) -60 60 15 30 40 110 U

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS41LV85120A, IS41C85120A. Please refer to the document for exact specifications by model.

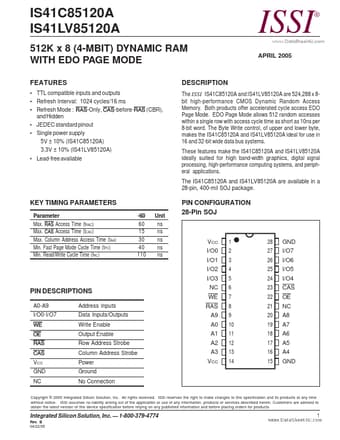

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS41LV85120A, IS41C85120A
Manufacturer
Integrated Silicon Solution
File Size
160.77 KB
Datasheet
IS41C85120A_IntegratedSiliconSolution.pdf
Description
512K x 8 (4-MBIT) DYNAMIC RAM
Note
This datasheet PDF includes multiple part numbers: IS41LV85120A, IS41C85120A.
Please refer to the document for exact specifications by model.
