IS41LV85125, IS41C85125 512K x 8 (4-MBIT) DYNAMIC RAM

IS41LV85125 Description

IS41C85125 IS41LV85125 512K x 8 (4-MBIT) DYNAMIC RAM WITH FAST PAGE MODE www.datasheet4u.com ISSI .
® PRELIMINARY INFORMATION AUGUST 2001 FEATURES. Fast access and cycle time TTL compatible inputs and outputs.

IS41LV85125 Features

* Fast access and cycle time TTL compatible inputs and outputs Refresh Interval: 1024 cycles/16 ms Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden
* JEDEC standard pinout
* Single power supply:
* 5V ± 10% (IS41C85125)
* 3

IS41LV85125 Applications

* The IS41C85125 and IS41LV85125 are available in a 28-pin, 400-mil SOJ package. KEY TIMING PARAMETERS Parameter Max. RAS Access Time (tRAC) Max. CAS Access Time (tCAC) Max. Column Address Access Time (tAA) Min. Fast Page Mode Cycle Time (tPC) Min. Read/Write Cycle Time (tRC) -35 35 10 18 12 60 -60

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS41LV85125, IS41C85125. Please refer to the document for exact specifications by model.

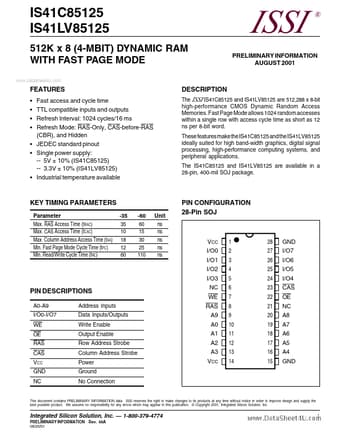

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS41LV85125, IS41C85125
Manufacturer
Integrated Silicon Solution
File Size
186.58 KB
Datasheet
IS41C85125_IntegratedSiliconSolution.pdf
Description
512K x 8 (4-MBIT) DYNAMIC RAM
Note
This datasheet PDF includes multiple part numbers: IS41LV85125, IS41C85125.
Please refer to the document for exact specifications by model.
