IDT7MPV6253 - 256KB AND 512KB SECONDARY CACHE MODULES FOR THE PowerPCO

Integrated Device

📥 Download Datasheet

IDT7MPV6253 Datasheet Preview — Preview of IDT7MPV6253 PDF

Datasheet Details

Part number	IDT7MPV6253
Manufacturer	Integrated Device
File Size	84.48 KB
Description	256KB AND 512KB SECONDARY CACHE MODULES FOR THE PowerPCO
Datasheet	IDT7MPV6253_IntegratedDeviceTechnology.pdf

IDT7MPV6253 Product details

Description

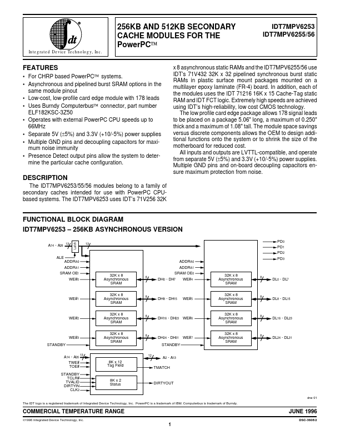

The IDT7MPV6253/55/56 modules belong to a family of secondary caches intended for use with PowerPC CPUbased systems. 256KB ASYNCHRONOUS VERSION A14 - A26 ALE ADDRA0 ADDRA1 SRAM OE1 WE#0 32K x 8 Asynchronous SRAM 32K x 8 Asynchronous SRAM 32K x 8 Asynchronous SRAM 32K x 8 Asynchronous SRAM 8 13 Latch 13 PD0 PD1 PD2 ADDRA0 ADDRA1 SRAM OE0 DH0 - DH7 WE#4 32K x 8 Asynchronous SRAM 32K x 8 Asynchronous SRAM 32K x

Features

For CHRP based PowerPC™ systems.
Asynchronous and pipelined burst SRAM options in the same module pinout.
Low-cost, low-profile card edge module with 178 leads.
Uses Burndy Computerbus™ connector, part number ELF182KSC-3Z50.
Operates with external PowerPC CPU speeds up to 66MHz.
Separate 5V (±5%) and 3.3V (+10/-5%) power supplies.
Multiple GND pins and decoupling capacitors for maximum noise immunity.
Presence Detect outpu.
