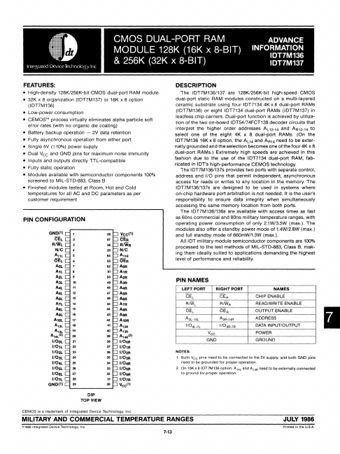

IDT7M137, IDT7M136 - CMOS Dual-Port RAM Module

Datasheet Details

Part number	IDT7M137, IDT7M136
Manufacturer	IDT
File Size	148.84 KB
Description	CMOS Dual-Port RAM Module
Datasheet	IDT7M136-IDT.pdf
Note	This datasheet PDF includes multiple part numbers: IDT7M137, IDT7M136. Please refer to the document for exact specifications by model.

High-density 128K/256K-bit CMOS dual-port RAM module.
32K x 8 organization (IDT7M137) or 16K x 8 option (IDT7M136).
Low-power consumption.
CEMOS'.
process virtually eliminates alpha particle soft error rates (with no organic die coating).
Battery backup operation - 2V data retention.
Fully asynchronous operation from either port.
Single 5V (±10%) power supply.
Dual Vee and GND pins for maximum noise immunity.
