IDT7M1014 - 4K x 36 BiCMOS DUAL-PORT STATIC RAM MODULE

Name: IDT7M1014
SKU: IDT7M1014-361707

Integrated Device

📥 Download Datasheet

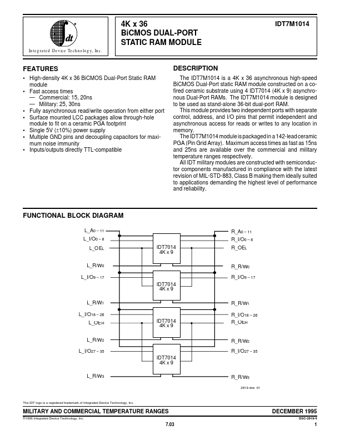

IDT7M1014 Datasheet Preview — Preview of IDT7M1014 PDF

Datasheet Details

Part number	IDT7M1014
Manufacturer	Integrated Device
File Size	85.66 KB
Description	4K x 36 BiCMOS DUAL-PORT STATIC RAM MODULE
Datasheet	IDT7M1014_IntegratedDeviceTechnology.pdf

IDT7M1014 Product details

Description

The IDT7M1014 is a 4K x 36 asynchronous high-speed BiCMOS Dual-Port static RAM module constructed on a cofired ceramic substrate using 4 IDT7014 (4K x 9) asynchronous Dual-Port RAMs.

Features

High-density 4K x 36 BiCMOS Dual-Port Static RAM module.
Fast access times.
Commercial: 15, 20ns.
Military: 25, 30ns.
Fully asynchronous read/write operation from either port.
Surface mounted LCC packages allow through-hole module to fit on a ceramic PGA footprint.
Single 5V (±10%) power supply.
Multiple GND pins and decoupling capacitors for maximum noise immunity.
Inputs/outputs directly TTL-compatible.
