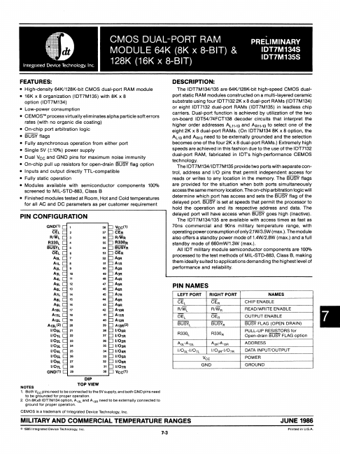

IDT7M135S, IDT7M134S - CMOS Dual-Port RAM Module

Datasheet Details

Part number	IDT7M135S, IDT7M134S
Manufacturer	IDT
File Size	578.03 KB
Description	CMOS Dual-Port RAM Module
Datasheet	IDT7M134S-IDT.pdf
Note	This datasheet PDF includes multiple part numbers: IDT7M135S, IDT7M134S. Please refer to the document for exact specifications by model.

High-density 64K1128K-bit CMOS dual-port RAM module.
16K x 8 organization (IDT7M135) with 8K x 8 option (IDT7M134).
Low-power consumption.
CEMOS.
process virtually eliminates alpha particle soft errors rates (with no organic die coating).
On-chip port arbitration logic.
BUSY flags.
Fully asynchronous operation from either port.
Single 5V (±10%) power supply.
Dual Vee and GND pins for maximum noise immunit.
