IDT7MPV6256 - 256KB AND 512KB SECONDARY CACHE MODULES FOR THE PowerPCO

Description

The IDT7MPV6253/55/56 modules belong to a family of secondary caches intended for use with PowerPC CPUbased systems.

256KB ASYNCHRONOUS VERSION A14 - A26 ALE ADDRA0 ADDRA1 SRAM OE1 WE#0 32K x 8 Asynchronous SRAM 32

Features

  • For CHRP based PowerPC™ systems.
  • Asynchronous and pipelined burst SRAM options in the same module pinout.
  • Low-cost, low-profile card edge module with 178 leads.
  • Uses Burndy Computerbus™ connector, part number ELF182KSC-3Z50.
  • Operates with external PowerPC CPU speeds up to 66MHz.
  • Separate 5V (±5%) and 3.3V (+10/-5%) power supplies.
  • Multiple GND pins and decoupling capacitors for maximum noise immunity.
  • Presence Detect outpu.

📥 Download Datasheet

Datasheet Details

Part number IDT7MPV6256
Manufacturer Integrated Device
File Size 84.48 KB
Description 256KB AND 512KB SECONDARY CACHE MODULES FOR THE PowerPCO
Datasheet download datasheet IDT7MPV6256 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDT7MP624S 1M CMOS Static RAM Plastic Module IDT
IDT7M134S CMOS Dual-Port RAM Module IDT
IDT7M135S CMOS Dual-Port RAM Module IDT
IDT7M136 CMOS Dual-Port RAM Module IDT
IDT7M137 CMOS Dual-Port RAM Module IDT

Other Datasheets by Integrated Device

Part Number Description
IDT7MPV6253 256KB AND 512KB SECONDARY CACHE MODULES FOR THE PowerPCO
IDT7MPV6255 256KB AND 512KB SECONDARY CACHE MODULES FOR THE PowerPCO
IDT7MP4045 256K x 32 CMOS STATIC RAM MODULE
IDT7MP4060 128K x 32 CMOS STATIC RAM MODULES
IDT7MP4095 128K x 32 CMOS STATIC RAM MODULES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

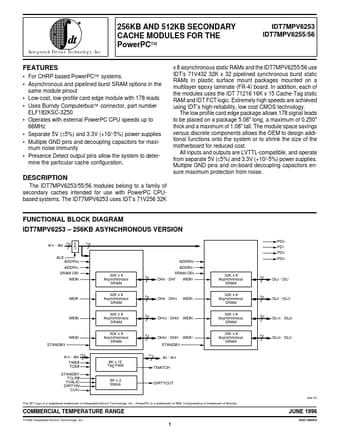

256KB AND 512KB SECONDARY CACHE MODULES FOR THE PowerPC™ Integrated Device Technology, Inc. IDT7MPV6253 IDT7MPV6255/56 FEATURES • For CHRP based PowerPC™ systems. • Asynchronous and pipelined burst SRAM options in the same module pinout • Low-cost, low-profile card edge module with 178 leads • Uses Burndy Computerbus™ connector, part number ELF182KSC-3Z50 • Operates with external PowerPC CPU speeds up to 66MHz • Separate 5V (±5%) and 3.3V (+10/-5%) power supplies • Multiple GND pins and decoupling capacitors for maximum noise immunity • Presence Detect output pins allow the system to determine the particular cache configuration.
