IDT7MP4045 - 256K x 32 CMOS STATIC RAM MODULE

Description

The IDT7MP4045/4145 is a 256K x 32 static RAM module constructed on an epoxy laminate (FR-4) substrate using 8 256K x 4 static RAMs in plastic SOJ packages.

Availability of four chip select lines (one for each group of two RAMs) provides byte access.

Features

  • High density 1 megabyte static RAM module (IDT7MP4145 upgradeable to 4 megabyte, IDT7MP4120).
  • Low profile 64 pin ZIP (Zig-zag In-line vertical Package) or 64 pin SIMM (Single In-line Memory Module) for IDT7MP4045 and 72 pin SIMM (Single In-line Memory Module) for IDT7MP4145.
  • Very fast access time: 15ns (max. ).
  • Surface mounted plastic components on an epoxy laminate (FR-4) substrate.
  • Single 5V (±10%) power supply.
  • Multiple GND pins and decou.

📥 Download Datasheet

Datasheet Details

Part number IDT7MP4045
Manufacturer Integrated Device
File Size 96.29 KB
Description 256K x 32 CMOS STATIC RAM MODULE
Datasheet download datasheet IDT7MP4045 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDT7MP624S 1M CMOS Static RAM Plastic Module IDT
IDT7M134S CMOS Dual-Port RAM Module IDT
IDT7M135S CMOS Dual-Port RAM Module IDT
IDT7M136 CMOS Dual-Port RAM Module IDT
IDT7M137 CMOS Dual-Port RAM Module IDT

Other Datasheets by Integrated Device

Part Number Description
IDT7MP4060 128K x 32 CMOS STATIC RAM MODULES
IDT7MP4095 128K x 32 CMOS STATIC RAM MODULES
IDT7MP4120 1M x 32 CMOS STATIC RAM MODULE
IDT7MP4145 256K x 32 CMOS STATIC RAM MODULE
IDT7MPV6253 256KB AND 512KB SECONDARY CACHE MODULES FOR THE PowerPCO

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

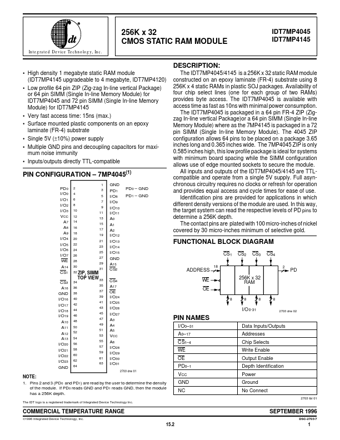

256K x 32 CMOS STATIC RAM MODULE Integrated Device Technology, Inc. IDT7MP4045 IDT7MP4145 FEATURES: • High density 1 megabyte static RAM module (IDT7MP4145 upgradeable to 4 megabyte, IDT7MP4120) • Low profile 64 pin ZIP (Zig-zag In-line vertical Package) or 64 pin SIMM (Single In-line Memory Module) for IDT7MP4045 and 72 pin SIMM (Single In-line Memory Module) for IDT7MP4145 • Very fast access time: 15ns (max.
