IDTQS4A205 HIGH-PERFORMANCE CMOS ANALOG FOUR-CHANNEL SPDT MUX/DEMUX

IDTQS4A205 Description

IDTQS4A205 HIGH-PERFORMANCE CMOS ANALOG FOUR-CHANNEL SPDT MUX/DEMUX QUICKSWITCH® PRODUCTS HIGH-PERFORMANCE CMOS ANALOG FOUR-CHANNEL SPDT MUX/DEMUX IN.
The QS4A205 is a high-performance CMOS analog Four-Channel SPDT multiplexer/demultiplex.

IDTQS4A205 Features

* Low ON resistance: rDS(ON) = 5Ω
* Fast transition time: tTRAN = 6ns
* Wide bandwidth: 830MHz (-3dB point)
* Crosstalk: -115dB at 50KHz, -100dB at 5MHz, -66dB at 30MHz
* Off-isolation: -90dB at 50KHz, -60dB at 5MHz, -50dB at 30MHz
* Single 5V supply

IDTQS4A205 Applications

* High-speed video signal switching/routing
* HDTV-quality video signal routing
* Audio signal switching/routing
* Data acquisition
* ATE systems
* Telecomm routing
* Switch between multiple video sources
* Token Ring transceivers

📥 Download Datasheet

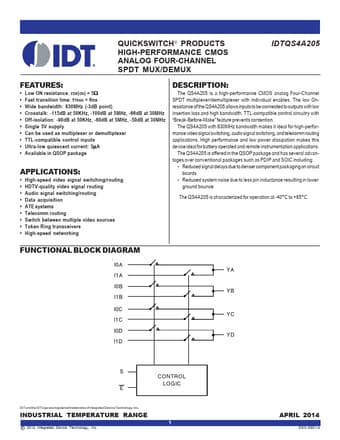

Preview of IDTQS4A205 PDF
