IDTQS4A105 HIGH-PERFORMANCE CMOS TWO CHANNEL 4PST SWITCH

IDTQS4A105 Description

IDTQS4A105 HIGH-PERFORMANCE CMOS TWO-CHANNEL 4PST SWITCH QUICKSWITCH® PRODUCTS HIGH-PERFORMANCE CMOS TWO CHANNEL 4PST SWITCH INDUSTRIAL TEMPERATURE R.
The QS4A105 is a high-performance CMOS two-channel 4PST switch with 3-state outputs.

IDTQS4A105 Features

* Low ON resistance: rDS(ON) = 5Ω
* Wide bandwidth: 1.3GHz (-3dB point)
* Crosstalk: 100dB at 50KHz, -70dB at 5MHz, -50dB at 30MHz
* Off-isolation: -90dB at 50KHz, -60dB at 5MHz, -55dB at 30MHz
* Single 5V supply
* Bidirectional signal flow

IDTQS4A105 Applications

* High-speed video signal switching/routing
* HDTV-quality video signal routing
* Audio signal switching/routing
* Data acquisition
* ATE systems
* Telecomm routing
* Token Ring transceivers
* High-speed networking FUNCTIONAL BLOCK DIA

📥 Download Datasheet

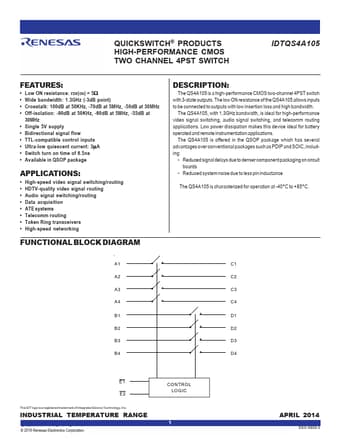

Preview of IDTQS4A105 PDF
