IDTQS4A201 HIGH-PERFORMANCE CMOS TWO-BY-TWO ANALOG CROSS POINT SWITCH

Integrated Device Technology

Description

IDTQS4A201 HIGH-PERFORMANCE CMOS TWO-BY-TWO ANALOG CROSS POINT QUICKSWITCH® PRODUCTS HIGH-PERFORMANCE CMOS TWO-BY-TWO ANALOG CROSS POINT SWITCH INDUS.
The QS4A201 is a high-performance CMOS two-by-two analog cross point switch.

📥 Download Datasheet

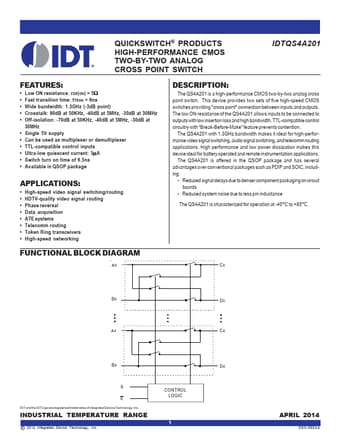

IDTQS4A201 Datasheet Preview — Preview of IDTQS4A201 PDF

Datasheet Specifications

Part number: IDTQS4A201
Manufacturer: Integrated Device Technology
File Size: 249.69 KB
Datasheet: IDTQS4A201-IntegratedDeviceTechnology.pdf
Description: HIGH-PERFORMANCE CMOS TWO-BY-TWO ANALOG CROSS POINT SWITCH

Features

* Low ON resistance: rDS(ON) = 5Ω
* Fast transition time: tTRAN = 6ns
* Wide bandwidth: 1.3GHz (-3dB point)
* Crosstalk: 90dB at 50KHz, -40dB at 5MHz, -30dB at 30MHz
* Off-isolation: -70dB at 50KHz, -40dB at 5MHz, -30dB at 30MHz
* Single 5V supply

Applications

* High-speed video signal switching/routing
* HDTV-quality video signal routing
* Phase reversal
* Data acquisition
* ATE systems
* Telecomm routing
* Token Ring transceivers
