IDTQS3126 - HIGH-SPEED CMOS QUADRUPLE BUS SWITCH

Integrated Device

📥 Download Datasheet

IDTQS3126 Datasheet Preview — Preview of IDTQS3126 PDF

Datasheet Details

Part number	IDTQS3126
Manufacturer	Integrated Device
File Size	202.75 KB
Description	HIGH-SPEED CMOS QUADRUPLE BUS SWITCH
Datasheet	IDTQS3126_IntegratedDeviceTechnology.pdf

IDTQS3126 Product details

Description

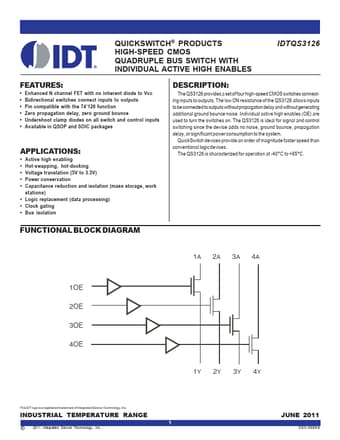

APPLICATIONS: Active high enabling Hot-swapping, hot-docking Voltage translation (5V to 3.3V) Power conservation Capacitance reduction and isolation (mass storage, work stations) Logic replacement (data processing) Clock gating Bus isolation The QS3126 provides a set of four high-speed CMOS switches connecting inputs to outputs.The low ON resistance of the QS3126 allows inputs to be connected to outputs without

Features

Enhanced N channel FET with no inherent diode to Vcc Bidirectional switches connect inputs to outputs Pin compatible with the 74’126 function Zero propagation delay, zero ground bounce Undershoot clamp diodes on all switch and control inputs Available in QSOP and SOIC packages IDTQS3126.
