ILX3483 - INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS-485

📥 Download Datasheet

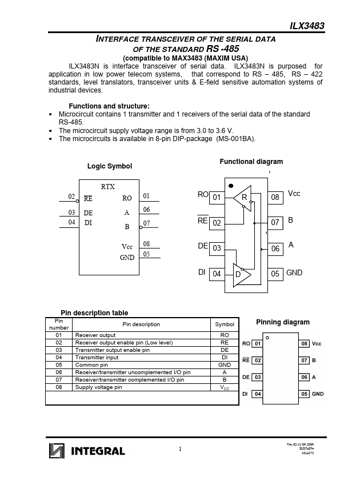

Preview of ILX3483 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number ILX3483
Manufacturer Integral
File Size 182.88 KB
Description INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS-485
Datasheet download datasheet ILX3483-Integral.pdf

ILX3483 Product details

Description

table Pin number Pin description 01 Receiver output 02 Receiver output enable pin (Low level) 03 Transmitter output enable pin 04 Transmitter input 05 Common pin 06 Receiver/transmitter uncomplemented I/O pin 07 Receiver/transmitter complemented I/O pin 08 Supply voltage pin Symbol RO RE DE DI GND А В VCC Pinning diagram 1 Ver.02/11/09.2009 ILX3483e 1014272 www.bms.by ILX3483 Maximum Ratings & Recommended Operating Conditions Parameter, unit Symbol Recommended operating conditi
