ILX3486N - Transmitter Receiver

Download the ILX3486N datasheet PDF. This datasheet also covers the ILX3483N variant, as both devices belong to the same transmitter receiver family and are provided as variant models within a single manufacturer datasheet.

Description

Pin number Symbol 01 RO 02 RE 03 DE 04 DI 05 GND 06 A 07 B 08 VCC Description Receiver output Receiver output enable pin Transmitter output enable pin Transmitter input Common pin Receiver/transmitter uncomplemented I/O pin Receiver/transmitter complemented I/O pin Supply voltage pin Ver

Features

  • ower output stage for case of occurrence of a strong disturbation in a line. At voltage increase in a line load capaci.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ILX3483N-Integral.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ILX3486N
Manufacturer Integral
File Size 145.29 KB
Description Transmitter Receiver
Datasheet download datasheet ILX3486N Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ILX3485 Slew-Rate-Limited RS-485/RS-422 Transceivers IK Semiconductor
ILX3085 Interface Transceiver IK Semiconductor
ILX3221 Interface Transceiver of the Serial Data of RS-232 Standard IK Semiconductor
ILX3221ESD Interface Transceiver of the Serial Data of RS-232 Standard IK Semiconductor
ILX3221ESDT Interface Transceiver of the Serial Data of RS-232 Standard IK Semiconductor

Other Datasheets by Integral

Part Number Description
ILX3486 INTERFACE TRANSCEIVER OF THE SERIAL DATA
ILX3483 INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS-485
ILX3483N Transmitter Receiver
ILX3485 INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS-485
ILX3485N Transmitter Receiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

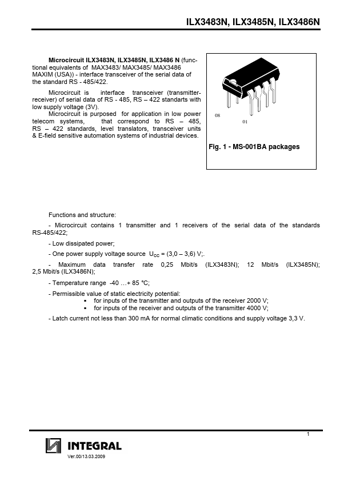

ILX3483N, ILX3485N, ILX3486N Microcircuit ILX3483N, ILX3485N, ILX3486 N (functional equivalents of MAX3483/ MAX3485/ MAX3486 MAXIM (USA)) - interface transceiver of the serial data of the standard RS - 485/422. Microcircuit is interface transceiver (transmitter- receiver) of serial data of RS - 485, RS – 422 standarts with low supply voltage (3V). Microcircuit is purposed for application in low power telecom systems, that correspond to RS – 485, RS – 422 standards, level translators, transceiver units & E-field sensitive automation systems of industrial devices. 08 01 Fig.
