ILX3221ETSD, ILX3221 - Interface Transceiver of the Serial Data of RS-232 Standard

Name: ILX3221ETSD
SKU: ILX3221ETSD-957661

IK Semiconductor

📥 Download Datasheet

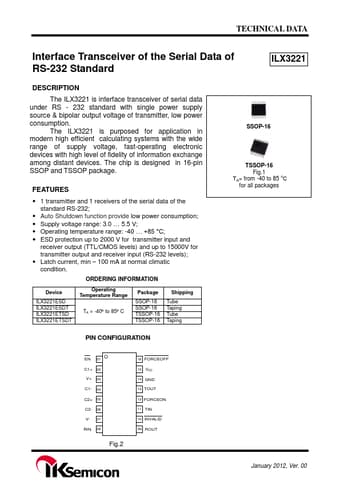

ILX3221ETSD Datasheet Preview — This datasheet PDF includes multiple part numbers: ILX3221ETSD, ILX3221. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ILX3221ETSD, ILX3221
Manufacturer	IK Semiconductor
File Size	276.24 KB
Description	Interface Transceiver of the Serial Data of RS-232 Standard
Datasheet	ILX3221-IKSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: ILX3221ETSD, ILX3221. Please refer to the document for exact specifications by model.

ILX3221ETSD Product details

Description

The ILX3221 is interface transceiver of serial data under RS - 232 standard with single power supply source & bipolar output voltage of transmitter, low power consumption.

Features

1 transmitter and 1 receivers of the serial data of the standard RS-232;.
Auto Shutdown function provide low power consumption;.
Supply voltage range: 3.0 … 5.5 V;.
Operating temperature range: -40 … +85 °С;.
ESD protection up to 2000 V for transmitter input and receiver output (TTL/CMOS levels) and up to 15000V for transmitter output and receiver input (RS-232 levels);.
Latch current, min.
100 mA at normal climatic condition. ORD.
