ILX3221EN - INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS-232

Integral

📥 Download Datasheet

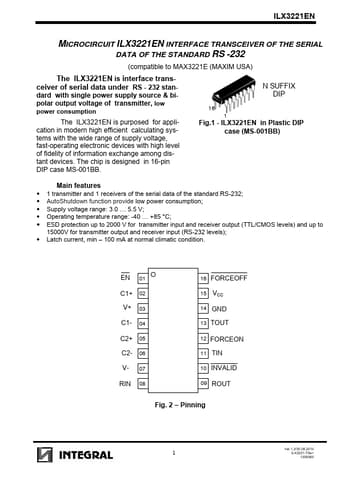

ILX3221EN Datasheet Preview — Preview of ILX3221EN PDF

Datasheet Details

Part number	ILX3221EN
Manufacturer	Integral
File Size	184.33 KB
Description	INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS-232
Datasheet	ILX3221EN-Integral.pdf

ILX3221EN Product details

Description

table Pin number 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 Symbol EN C1+ V+ C1C2+ C2VRIN ROUT INVALID TIN FORCEON TOUT GND Vcc FORCEOFF Pin description Receiver enable control input Positive terminal of the voltage multiplier charge-pump capacitor Positive voltage multiplier output Negative terminal of the voltage multiplier charge-pump capacitor Positive terminal of the voltage multiplier charge-pump capacitor Negative terminal of the voltage multiplier charge-pump capacitor Negative v

Features

1 transmitter and 1 receivers of the serial data of the standard RS-232;.
AutoShutdown function provide low power consumption;.
Supply voltage range: 3.0 … 5.5 V;.
Operating temperature range: -40 … +85 °С;.
ESD protection up to 2000 V for transmitter input and receiver output (TTL/CMOS levels) and up to 15000V for transmitter output and receiver input (RS-232 levels);.
Latch current, min.
100 mA at normal climatic condition. EN 01.
