ILX3486 - INTERFACE TRANSCEIVER OF THE SERIAL DATA

Description

table Pin number Pin description 01 Receiver output 02 Receiver output enable pin (Low level) 03 Transmitter output enable pin 04 Transmitter input 05 Common pin 06 Receiver/transmitter uncomplemented I/O pin 07 Receiver/transmitter complemented I/O pin 08 Supply voltage pin Symbol RO RE

📥 Download Datasheet

Datasheet Details

Part number ILX3486
Manufacturer Integral
File Size 180.58 KB
Description INTERFACE TRANSCEIVER OF THE SERIAL DATA
Datasheet download datasheet ILX3486 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ILX3485 Slew-Rate-Limited RS-485/RS-422 Transceivers IK Semiconductor
ILX3085 Interface Transceiver IK Semiconductor
ILX3221 Interface Transceiver of the Serial Data of RS-232 Standard IK Semiconductor
ILX3221ESD Interface Transceiver of the Serial Data of RS-232 Standard IK Semiconductor
ILX3221ESDT Interface Transceiver of the Serial Data of RS-232 Standard IK Semiconductor

Other Datasheets by Integral

Part Number Description
ILX3486N Transmitter Receiver
ILX3483 INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS-485
ILX3483N Transmitter Receiver
ILX3485 INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS-485
ILX3485N Transmitter Receiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

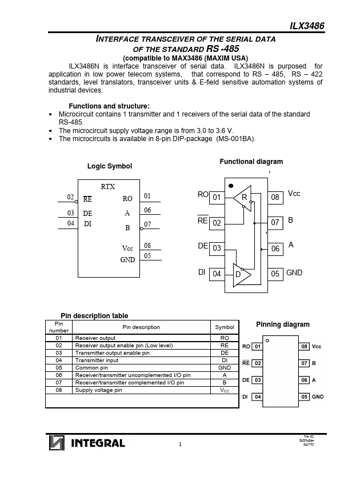

ILX3486 INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS -485 (compatible to MAX3486 (MAXIM USA) ILX3486N is interface transceiver of serial data. ILX3486N is purposed for application in low power telecom systems, that correspond to RS – 485, RS – 422 standards, level translators, transceiver units & E-field sensitive automation systems of industrial devices. Functions and structure: • Microcircuit contains 1 transmitter and 1 receivers of the serial data of the standard RS-485. • The microcircuit supply voltage range is from 3.0 to 3.6 V. • The microcircuits is available in 8-pin DIP-package (MS-001BA).
