ILA8890 - TV-processor

Integral

ILA8890 Datasheet Preview — Preview of ILA8890 PDF

Datasheet Details

Part number	ILA8890
Manufacturer	Integral
File Size	230.06 KB
Description	TV-processor
Datasheet	ILA8890-Integral.pdf

ILA8890 Product details

Description

The ILA8890/91 are front-end TV-processors, which are provide Audio & video IF signal processing Line and frame synchronization signals forming Audio/video input/output switching. Chroma & luminance signals forming Multi standard color decoding PAL, NTSC, SECAM (only for ILA8891). One line duration delay of chroma signal (only for ILA8891) YPRPB signals forming for PIP function processing.

Features

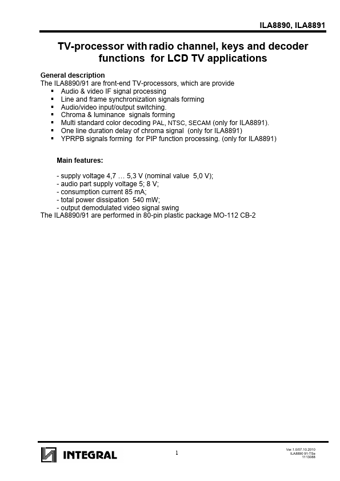

- supply voltage 4,7 … 5,3 V (nominal value 5,0 V); - audio part supply voltage 5; 8 V; - consumption current 85 mA; - total power dissipation 540 mW; - output demodulated video signal swing The ILA8890/91 are performed in 80-pin plastic package MO-112 CB-2 1 Ver.1.0/07.10.2010 ILA8890 91-TSe 1113088 www. bms. by ILA8890, ILA8891 Table 1 Pin.
