ILA82C251 - CAN TRANSCEIVER

IK Semiconductor

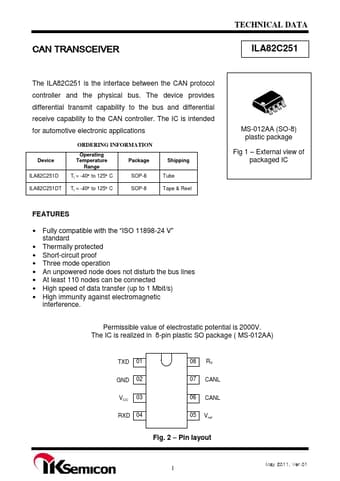

ILA82C251 Datasheet Preview — Preview of ILA82C251 PDF

Datasheet Details

Part number	ILA82C251
Manufacturer	IK Semiconductor
File Size	283.68 KB
Description	CAN TRANSCEIVER
Datasheet	ILA82C251-IKSemiconductor.pdf

ILA82C251 Product details

Description

Pin number 01 02 03 04 05 06 07 08 - Pad number 01 02 03 05 06 07 08 09 04 Symbol TXD GND VCC RXD Vref CANL CANH RS - Description Transmit data input (transmitter) Ground Supply voltage Receive data output (receiver) Reference voltage output LOW-level CAN voltage input/output HIGH-level CAN voltage input/output Mode set input Not bonded TXD 01 Input signal block RS RXD 08 04 Switch mode block 05 Vref Reference voltage Protection block Driver Receiver VD1, VD2 diodes; VT1,

Features

Fully compatible with the “ISO 11898-24 V” standard.
Thermally protected.
Short-circuit proof.
Three mode operation.
An unpowered node does not disturb the bus lines.
At least 110 nodes can be connected.
High speed of data transfer (up to 1 Mbit/s).
High immunity against electromagnetic interference. Permissible value of electrostatic potential is 2000V. The IC is realized in 8-pin plastic SO package ( MS-012AA) TXD 01 GND 02 VCC 03 RXD 04 08 RS 07 CANL.
