ILA8362ANS - Multistandard TV Processor

IK Semiconductor

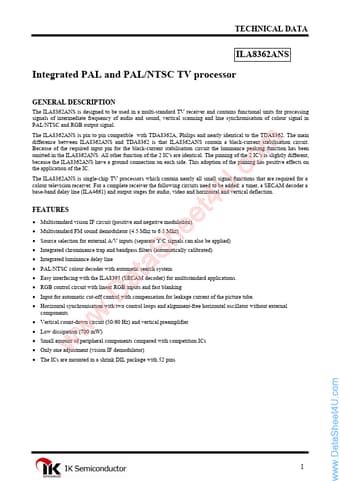

ILA8362ANS Datasheet Preview — Preview of ILA8362ANS PDF

Datasheet Details

Part number	ILA8362ANS
Manufacturer	IK Semiconductor
File Size	446.14 KB
Description	Multistandard TV Processor
Datasheet	ILA8362ANS_IKSemiconductor.pdf

ILA8362ANS Product details

Description

The ILA8362ANS is designed to be used in a multi-standard TV receiver and contains functional units for processing signals of intermediate frequency of audio and sound, vertical scanning and line synchronisation of colour signal in PAL/NTSC and RGB output signal.

Features

Multistandard vision IF circuit (positive and negative modulation).
Multistandard FM sound demodulator (4.5 Mhz to 6.5 Mhz).
Source selection for external A/V inputs (separate Y/C signals can also be applied).
Integrated chrominance trap and bandpass filters (automatically calibrated).
Integrated luminance delay line.
PAL/NTSC colour decoder with automatic search system.
Easy interfacing with the ILA8395 (SECAM decoder) for multis.
