ILA8362W - Black-white TV Processor

IK Semiconductor

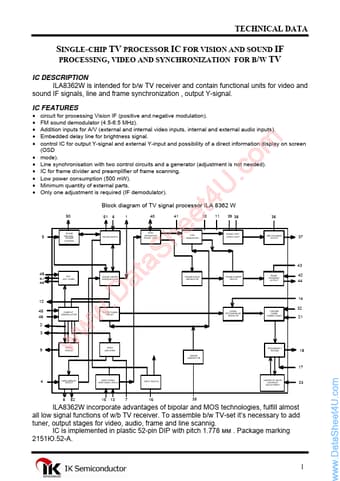

ILA8362W Datasheet Preview — Preview of ILA8362W PDF

Datasheet Details

Part number	ILA8362W
Manufacturer	IK Semiconductor
File Size	268.70 KB
Description	Black-white TV Processor
Datasheet	ILA8362W_IKSemiconductor.pdf

ILA8362W Product details

Description

ILA8362W is intended for b/w TV receiver and contain functional units for video and sound IF signals, line and frame synchronization , output Y-signal.

Features

circuit for processing Vision IF (positive and negative modulation). FM sound demodulator (4.5-6.5 МHz). Addition inputs for A/V (external and internal video inputs, internal and external audio inputs). Embedded delay line for brightness signal. control IC for output Y-signal and external Y-input and possibility of a direct information display on screen (OSD mode). Line synchronisation w.
