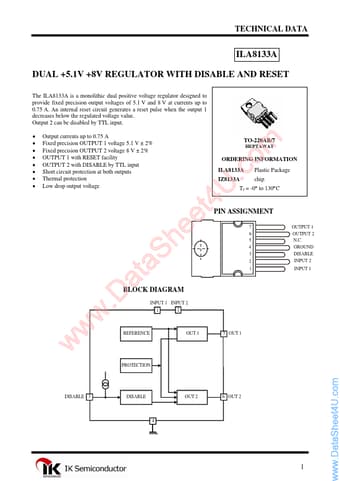

TECHNICAL DATA
ILA8133A DUAL +5.1V +8V REGULATOR WITH DISABLE AND RESET
The ILA8133A is a monolithic dual positive voltage regulator designed to provide fixed precision output voltages of 5.1 V and 8 V at currents up to 0.75 A. An internal reset circuit generates a reset pulse when the output 1 decreases below the regulated voltage value. Output 2 can be disabled by TTL input. • • • • • • • • Output currents up to 0.75 A Fixed precision OUTPUT 1 voltage 5.1 V ± 2% Fixed precision OUTPUT 2 voltage 8 V ± 2% OUTPUT 1 with RESET facility OUTPUT 2 with DISABLE by TTL input Short circuit protection at both outputs Thermal protection Low drop output voltage TO-220AB/7
HEPTAWAT
ORDERING INFORMATION ILA8133A Plastic Package chip
w
w
w
t a .D
S a
e h
U 4 t e
IZ8133A
TJ = -0° to 130°C
.
