ILA8842 - I2C BUS Controlled PAL/NTSC/Secam TV processor

IK Semiconductor

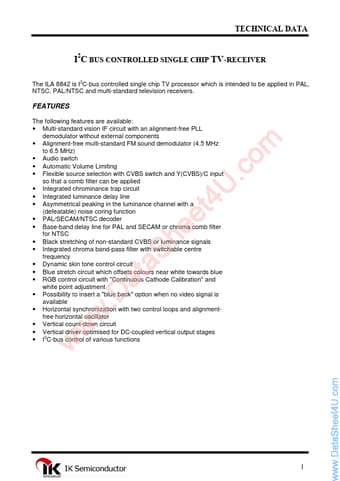

ILA8842 Datasheet Preview — Preview of ILA8842 PDF

Datasheet Details

Part number	ILA8842
Manufacturer	IK Semiconductor
File Size	395.41 KB
Description	I2C BUS Controlled PAL/NTSC/Secam TV processor
Datasheet	ILA8842_IKSemiconductor.pdf

ILA8842 Product details

Description

Sound IF input External audio input not connected not connected IF-PLL loop filter IF video output serial clock input serial data input/output bandgap decoupling chrominance input (S-VHS) external CVBS/Y input main supply voltage (+8 V) internal CVBS input ground 1 audio output SECAM PLL decoupling external CVBS input 2 ILA8842 BLKIN BO GO RO BCLIN RI GI BI RGBIN LUMIN LUMOUT BYO RYO BYI RYI REFO XTAL1 XTAL2 DET VP2 CVBS1O DECDIG HOUT FBISO PH2LF PH1LF GND2 AVL VDRB VDRA IFIN1 IFIN2 EHTO VSC I

Features

The following features are available:.
Multi-standard vision IF circuit with an alignment-free PLL demodulator without external components.
Alignment-free multi-standard FM sound demodulator (4.5 MHz to 6.5 MHz).
Audio switch.
Automatic Volume Limiting.
Flexible source selection with CVBS switch and Y(CVBS)/C input so that a comb filter can be applied.
Integrated chrominance trap circuit.
Integrated luminance delay line.
Asy.
