ITCH16045A2 - High Power RF LDMOS FET

Innogration

📥 Download Datasheet

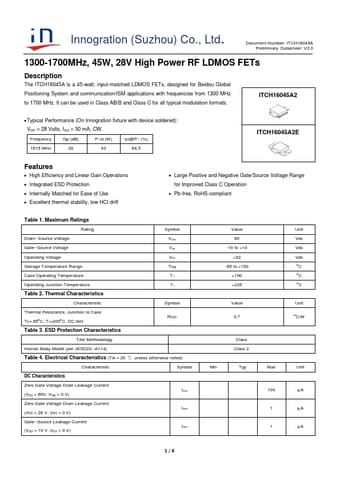

ITCH16045A2 Datasheet Preview — Preview of ITCH16045A2 PDF

Datasheet Details

Part number	ITCH16045A2
Manufacturer	Innogration
File Size	393.12 KB
Description	High Power RF LDMOS FET
Datasheet	ITCH16045A2-Innogration.pdf

ITCH16045A2 Product details

Description

The ITCH16045A is a 45-watt, input-matched LDMOS FETs, designed for Beidou Global Positioning System and communication/ISM applications with frequencies from 1300 MHz to 1700 MHz. Typical Performance (On Innogration fixture with device soldered): VDD = 28 Volts, IDQ = 50 mA, CW.Frequency Gp (dB) P-1dB (W ) D@P-1 (%) 1615 MHz 20 43 64.5 ITCH16045A2E

Features

High Efficiency and Linear Gain Operations.
Integrated ESD Protection.
Internally Matched for Ease of Use.
Excellent thermal stability, low HCI drift.
Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation.
Pb-free, RoHS-compliant Table 1. Maximum Ratings Rating Symbol Value Unit Drain--Source Voltage VDSS 65 Vdc Gate.
