ITC117PL - Integrated Telecom Circuits

Name: ITC117PL
SKU: ITC117PL-901771

IXYS

📥 Download Datasheet

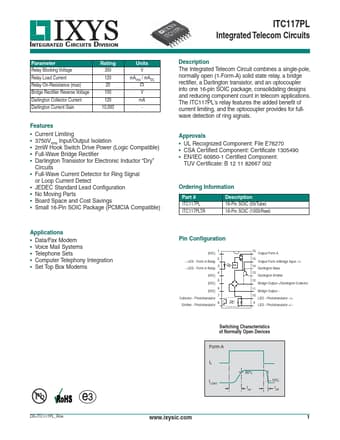

ITC117PL Datasheet Preview — Preview of ITC117PL PDF

Datasheet Details

Part number	ITC117PL
Manufacturer	IXYS
File Size	138.86 KB
Description	Integrated Telecom Circuits
Datasheet	ITC117PL-IXYS.pdf

ITC117PL Product details

Description

The Integrated Telecom Circuit combines a single-pole, normally open (1-Form-A) solid state relay, a bridge rectifier, a Darlington transistor, and an optocoupler into one 16-pin SOIC package, consolidating designs and reducing component count in telecom applications.

Features

Current Limiting.
3750Vrms Input/Output Isolation.
2mW Hook Switch Drive Power (Logic Compatible).
Full-Wave Bridge Rectifier.
Darlington Transistor for Electronic Inductor “Dry” Circuits.
Full-Wave Current Detector for Ring Signal or Loop Current Detect.
JEDEC Standard Lead Configuration.
No Moving Parts.
Board Space and Cost Savings.
Small 16-Pin SOIC Package (PCMCIA Compatible) ITC117PL Integrated Tele.
