PTFA072401FL, PTFA072401EL - Thermally-Enhanced High Power RF LDMOS FETs

PTFA072401FL Description

PTFA072401EL PTFA072401FL Confidential, Limited Internal Distribution Thermally-Enhanced High Power RF LDMOS FETs 240 W, 725 * 770 MHz Descri.
The PTFA072401EL and PTFA072401FL are 240-watt LDMOS FETs designed for use in cellular power amplifier applications in the 725 to 770 MHz frequency ba.

PTFA072401FL Features

* Broadband internal matching Typical two-carrier WCDMA performance at 770 MHz, 30 V - Average output power = 40 W - Linear Gain = 19 dB - Efficiency = 25% - Intermodulation distortion =
* 39 dBc Typical CW performance, 770 MHz, 30 V - Output power at P
* 1dB = 240 W -

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PTFA072401FL, PTFA072401EL. Please refer to the document for exact specifications by model.

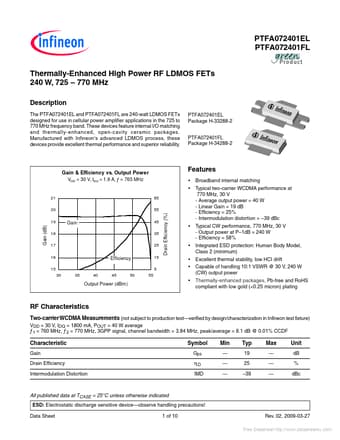

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PTFA072401FL, PTFA072401EL
Manufacturer
Infineon ↗
File Size
345.98 KB
Datasheet
PTFA072401EL_Infineon.pdf
Description
Thermally-Enhanced High Power RF LDMOS FETs
Note
This datasheet PDF includes multiple part numbers: PTFA072401FL, PTFA072401EL.
Please refer to the document for exact specifications by model.
