2SD1760 - Silicon NPN Power Transistor

📥 Download Datasheet

Preview of 2SD1760 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SD1760
Manufacturer Inchange Semiconductor
File Size 227.86 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2SD1760-InchangeSemiconductor.pdf

2SD1760 Product details

Description

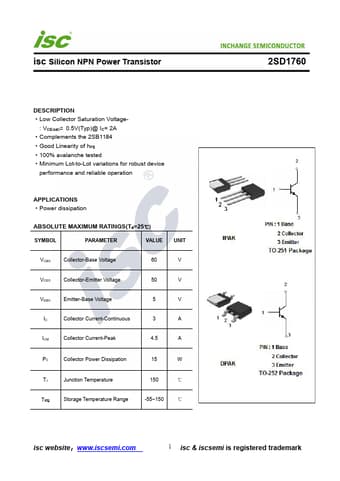

Low Collector Saturation Voltage- : VCE(sat)= 0.5V(Typ)@ IC= 2A Complements the 2SB1184 Good Linearity of hFE 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Power dissipation ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 3 A ICM
