2SD1762 - Power Transistor

Rohm

📥 Download Datasheet

2SD1762 Datasheet Preview — Preview of 2SD1762 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SD1762
Manufacturer	ROHM
File Size	153.28 KB
Description	Power Transistor
Datasheet	2SD1762_Rohm.pdf

2SD1762 Product details

Features

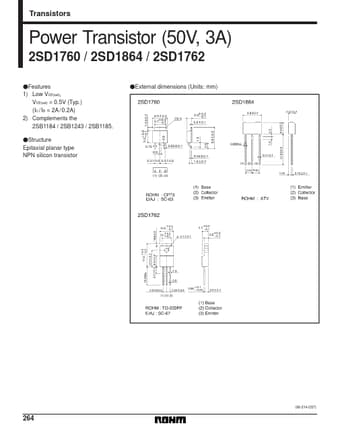

1) Low VCE(sat), VCE(sat) = 0.5V (Typ. ) (IC / IB = 2A / 0.2A) 2) Complements the 2SB1184 / 2SB1243 / 2SB1185. FStructure Epitaxial planar type NPN silicon transistor FExternal dimensions (Units: mm) (96-214-D57) 264 Transistors FAbsolute maximum ratings (Ta = 25_C) 2SD1760 / 2SD1864 / 2SD1762 FElectrical characteristics (Ta = 25_C) FPackaging specifications and hFE hFE values are classified as follows : 265 Transistors FElectrical characteristic curves 2SD1760 / 2SD1864 / 2SD1762 266.
