2SB821 - Silicon PNP Power Transistors

Inchange Semiconductor

📥 Download Datasheet

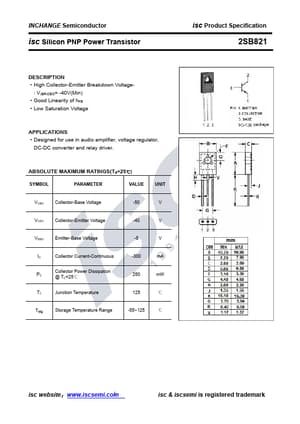

2SB821 Datasheet Preview — Preview of 2SB821 PDF

Datasheet Details

Part number	2SB821
Manufacturer	Inchange Semiconductor
File Size	141.95 KB
Description	Silicon PNP Power Transistors
Datasheet	2SB821-InchangeSemiconductor.pdf

2SB821 Product details

Description

High Collector-Emitter Breakdown Voltage- : V(BR)CEO= -40V(Min) Good Linearity of hFE Low Saturation Voltage APPLICATIONS Designed for use in audio amplifier, voltage regulator, DC-DC converter and relay driver.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -50 V VCEO Collector-Emitter Voltage -40 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Te
