2SA1389 - POWER TRANSISTOR

The 2SA1389 by Inchange Semiconductor is a POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

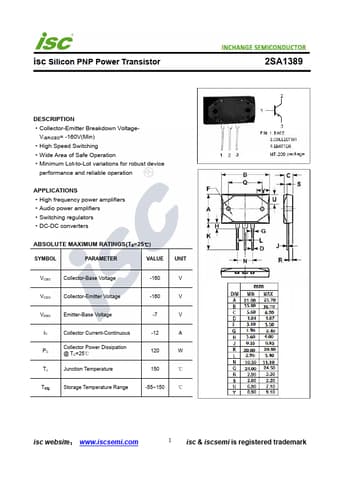

Official preview page of the 2SA1389 POWER TRANSISTOR datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA1389
Manufacturer Inchange Semiconductor
File Size 218.62 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA1389_InchangeSemiconductor.pdf
Additional preview pages of the 2SA1389 datasheet.

2SA1389 Product details

Description

Collector-Emitter Breakdown Voltage- V(BR)CEO= -160V(Min) High Speed Switching Wide Area of Safe Operation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS High frequency power amplifiers Audio power amplifiers Switching regulators DC-DC converters ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC C
